Wiring Diagrams and General Specification/Lubrication Sheets

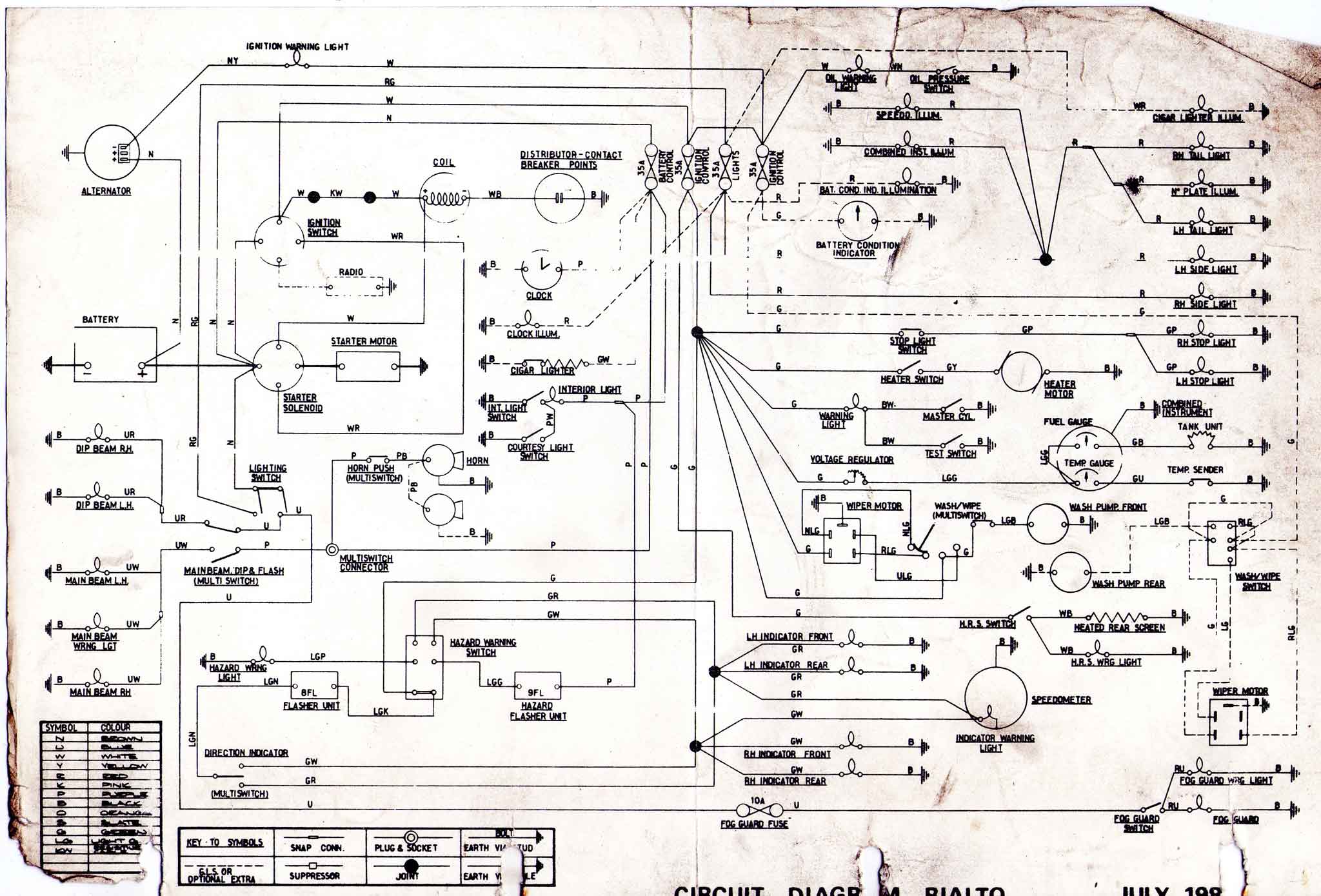

Reliant Rialto wiring diagram

NEW!

NEW!

Click on the links beneath the headings below to view the wiring diagrams.



Regal Car and Van

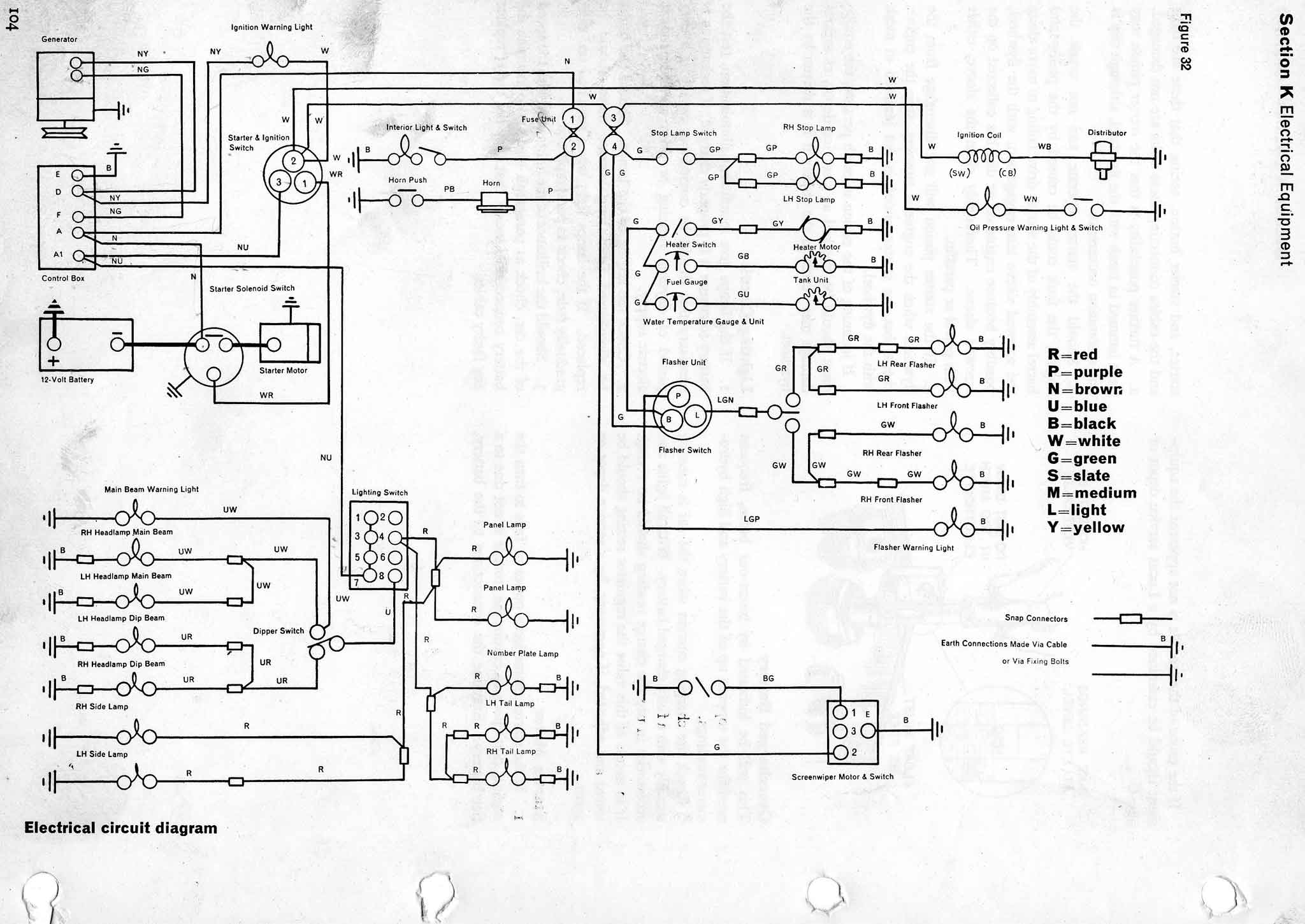

Reliant Regal 3.25 Car and Van 600cc Wiring Diagram

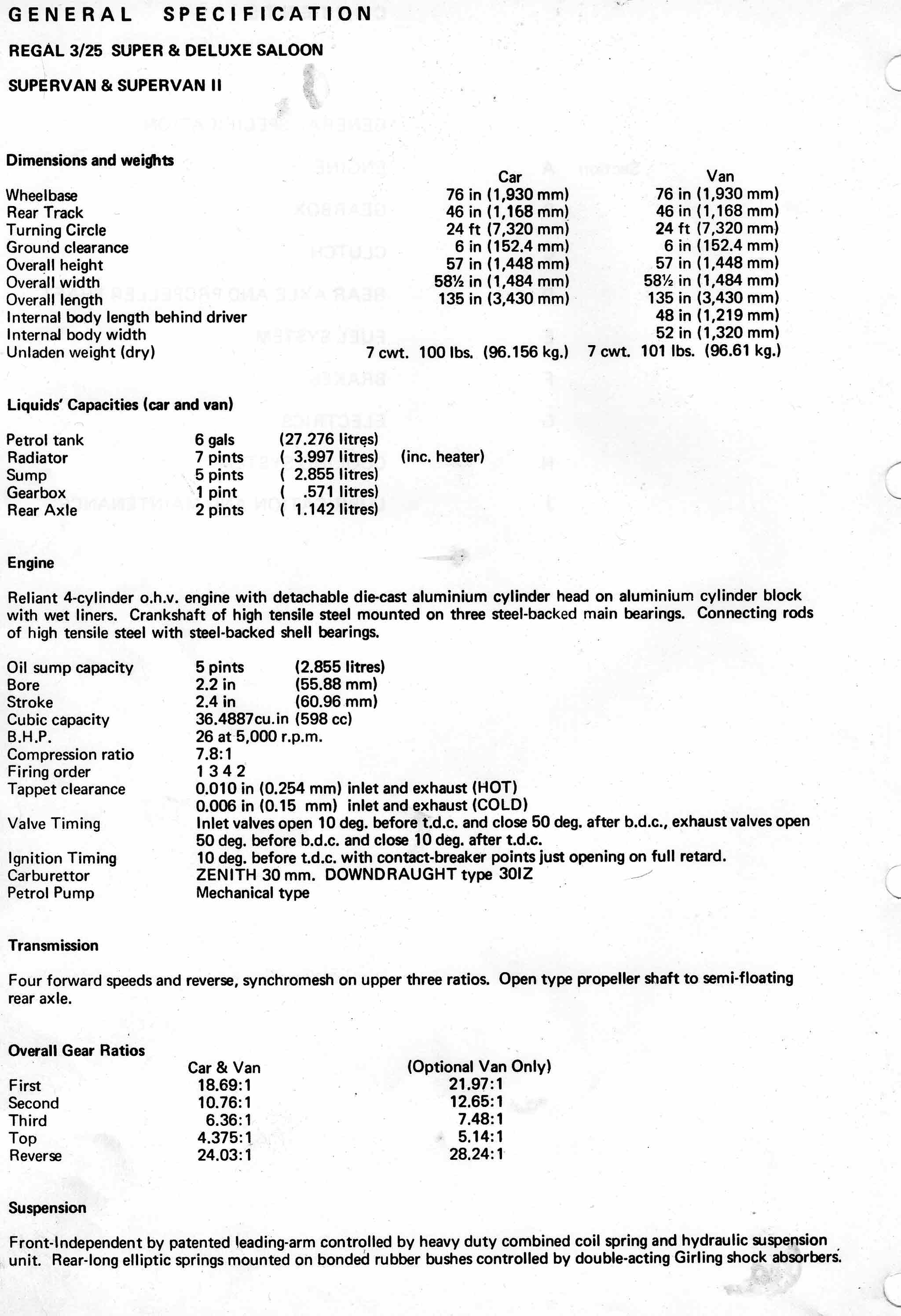

Gen Spec Regal Sup
Reliant Regal 3.30 Car and Van 700cc Wiring Diagram

Gen Spec Regal1

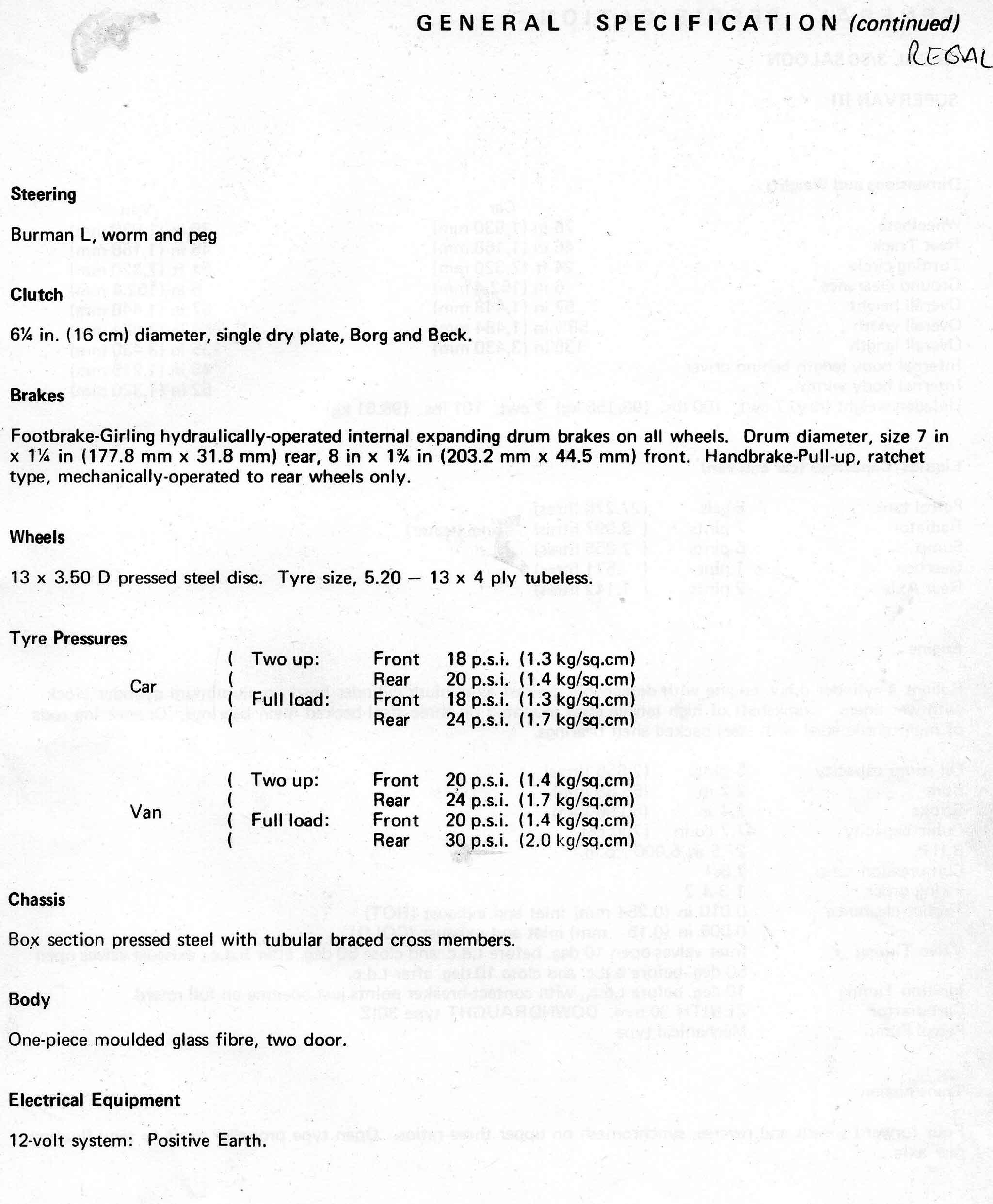

Gen Spec Regal2





Please note the 700cc colour code is the same as 600cc

Robin/Super Robin Saloon and Van

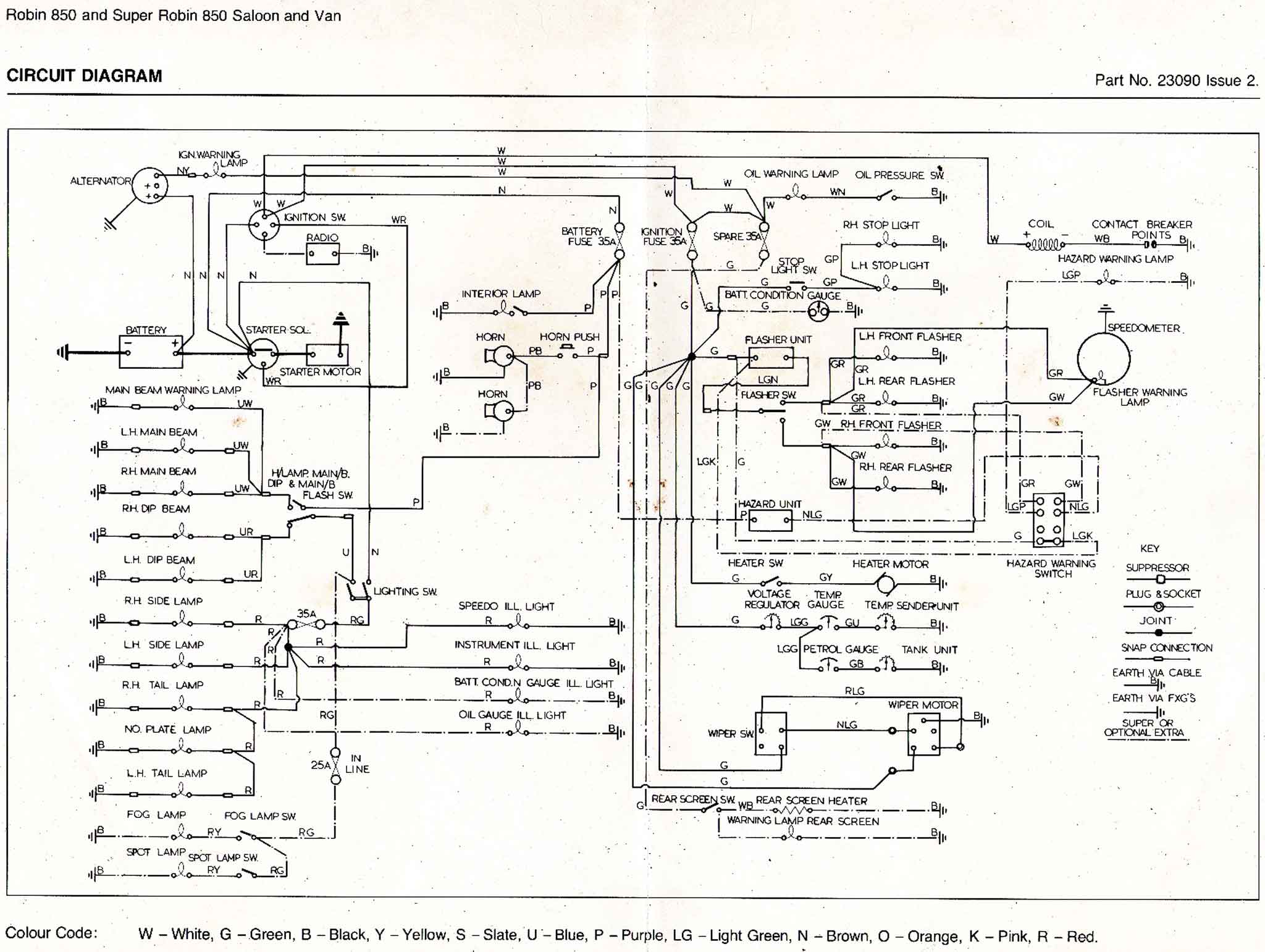

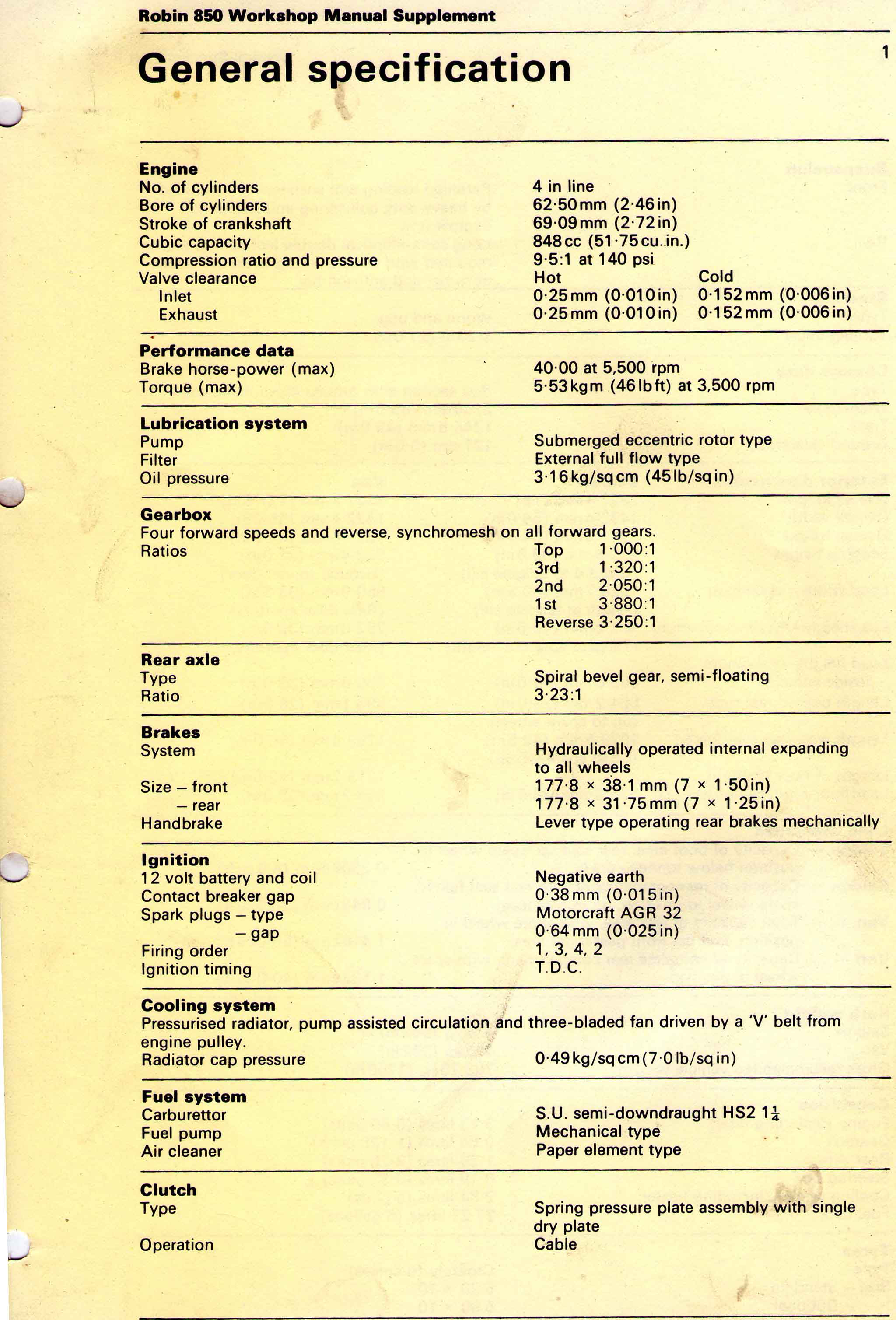

Gen Spec2 early Robin 850 Gen Spec early Robin 850

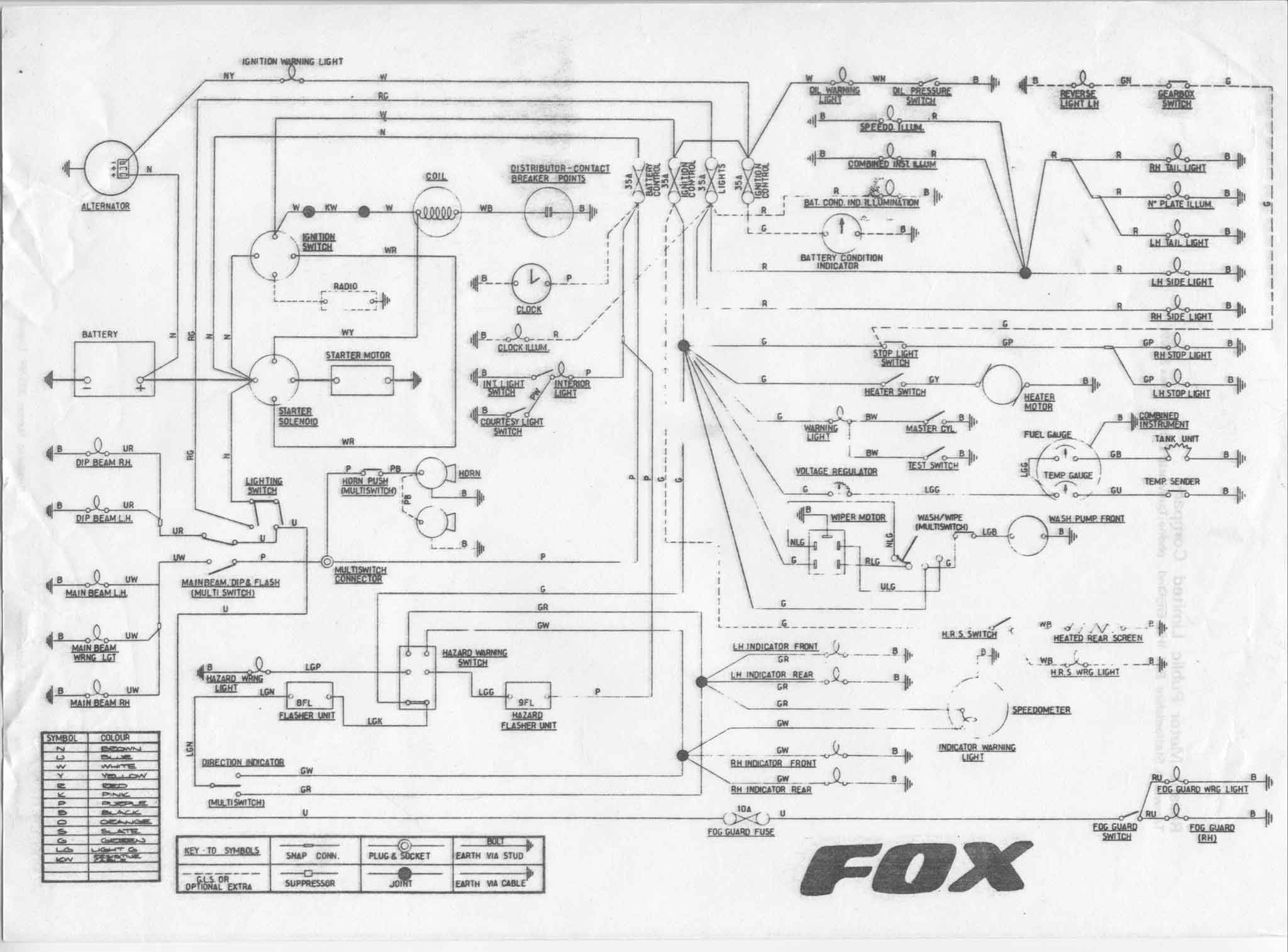

Reliant Fox wiring diagram



Wiring Diagram

Kitten Saloon and Estate

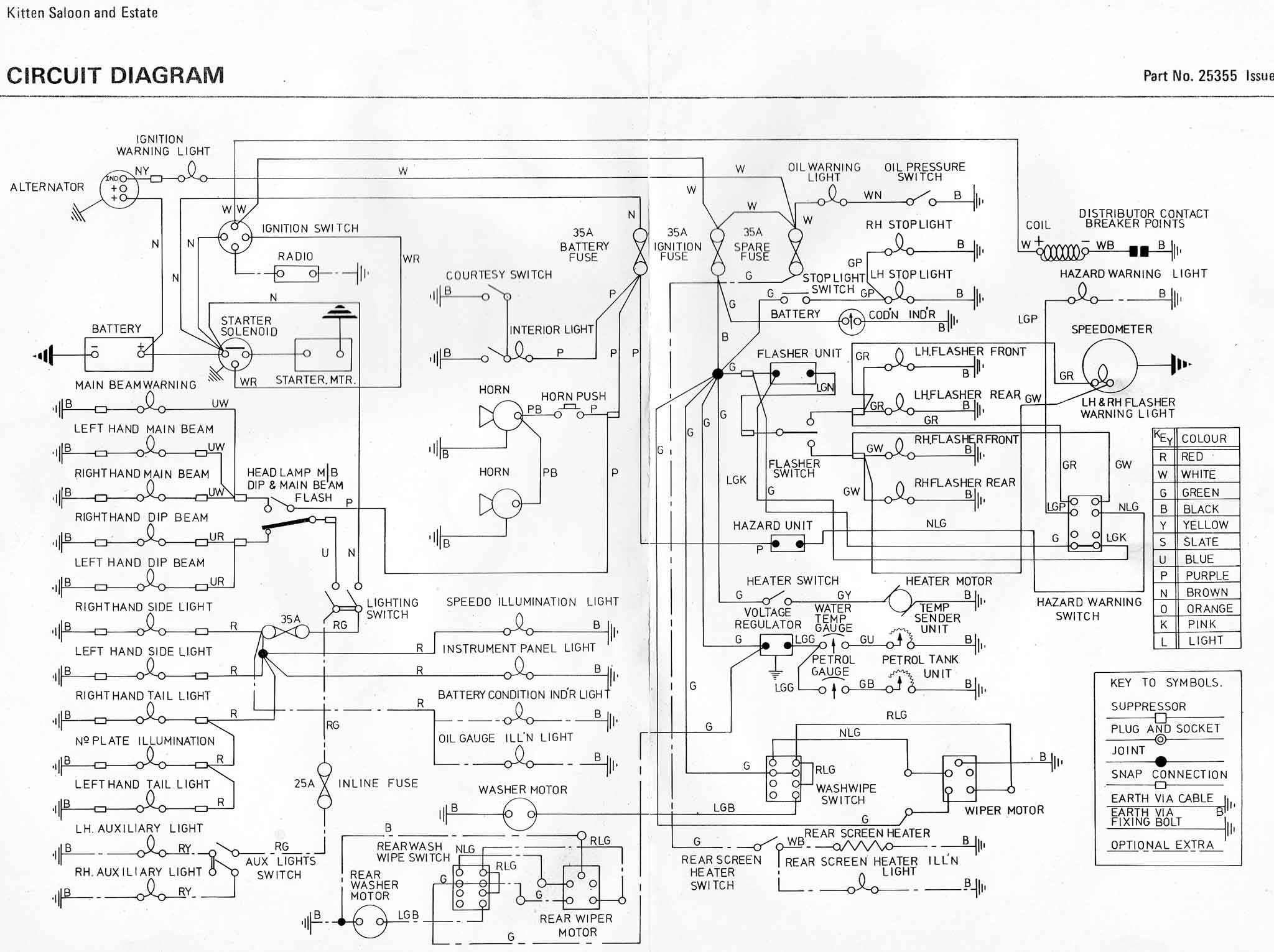

Reliant Kitten Saloon, Estate and Van Wiring Diagram

Fox

Reliant Fox Wiring Diagram

Rebel

Reliant Rebel Wiring Diagram

Ant

Reliant Ant / Melford / BTB Wiring Diagram

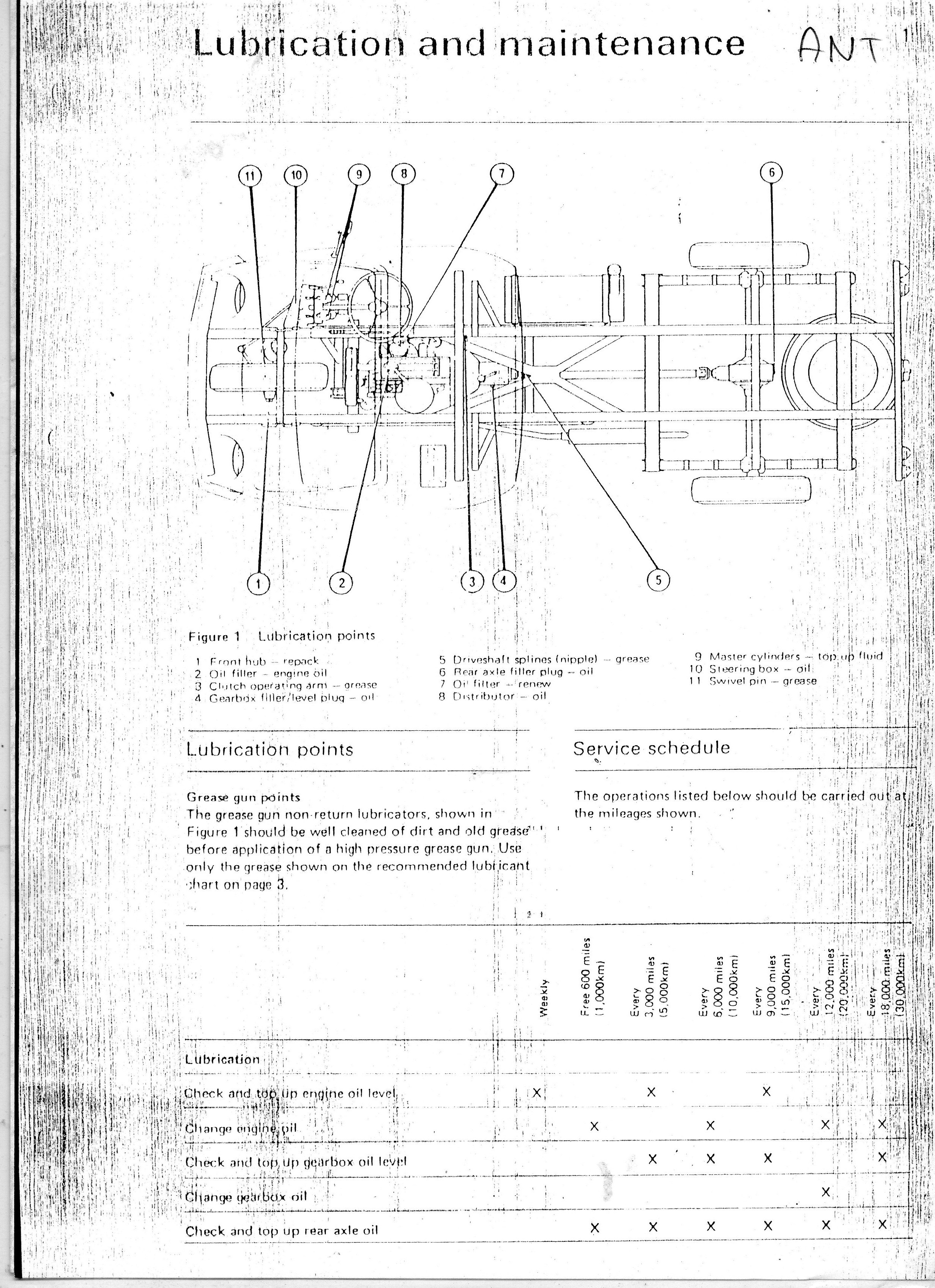

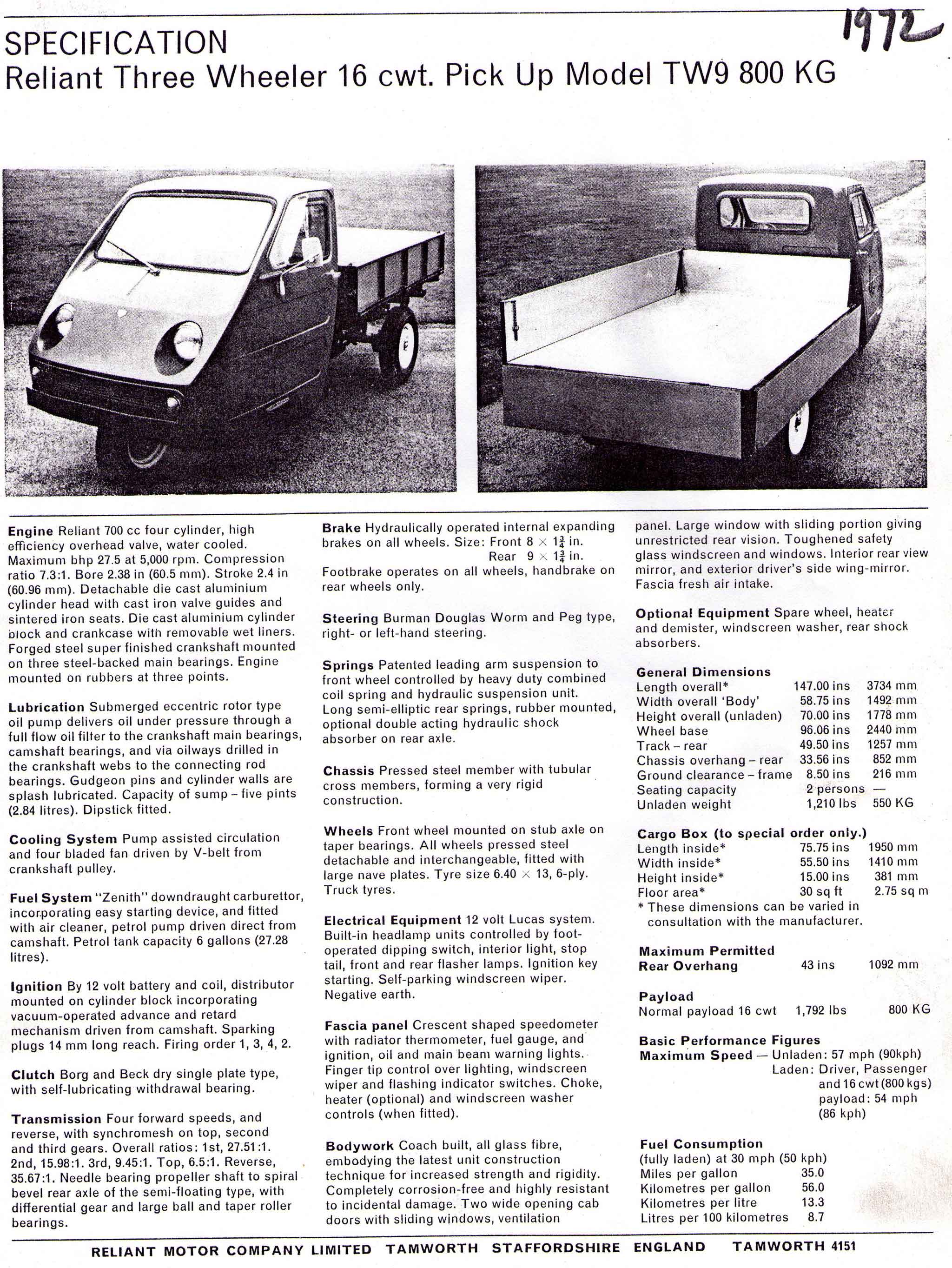

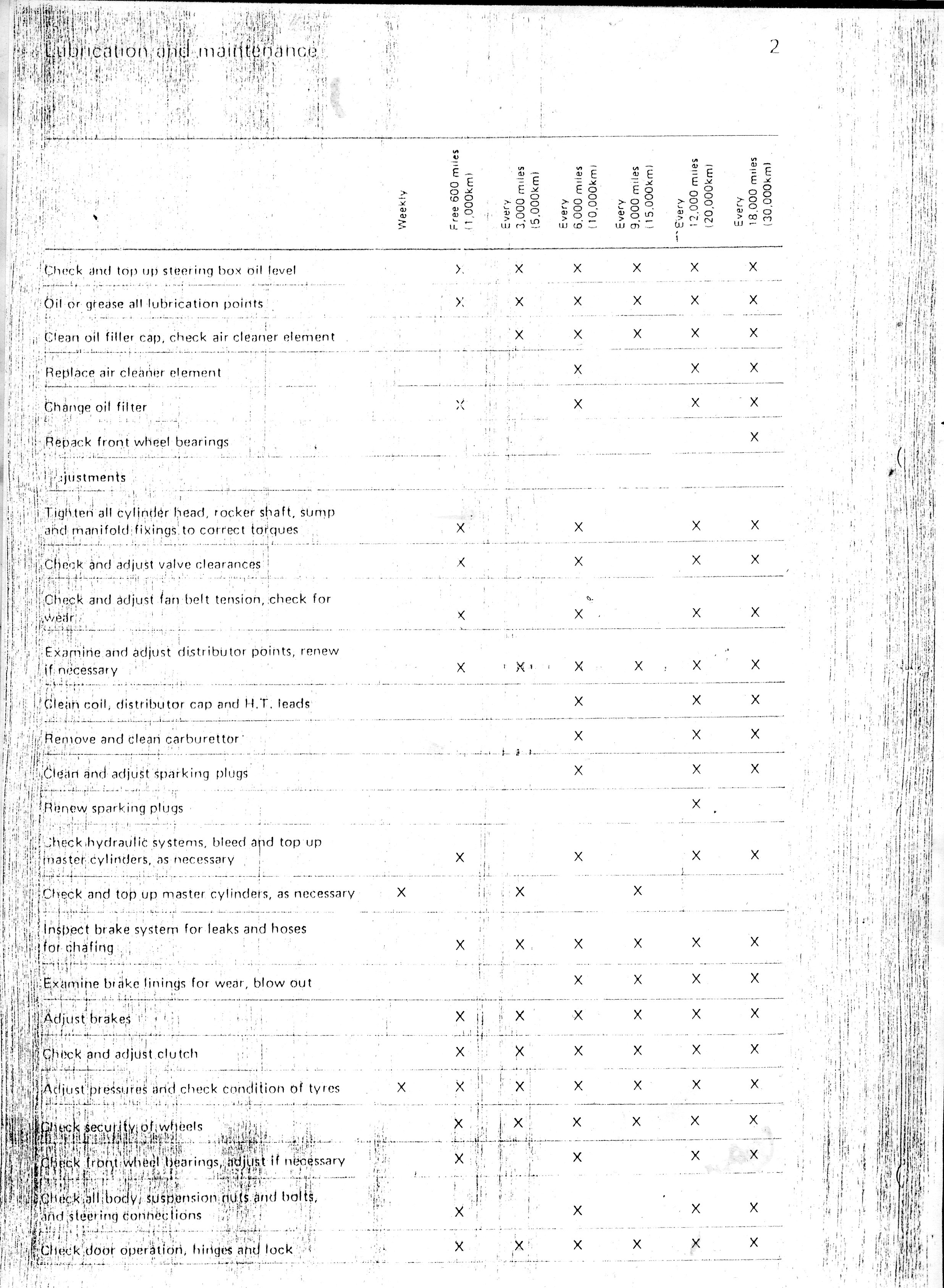

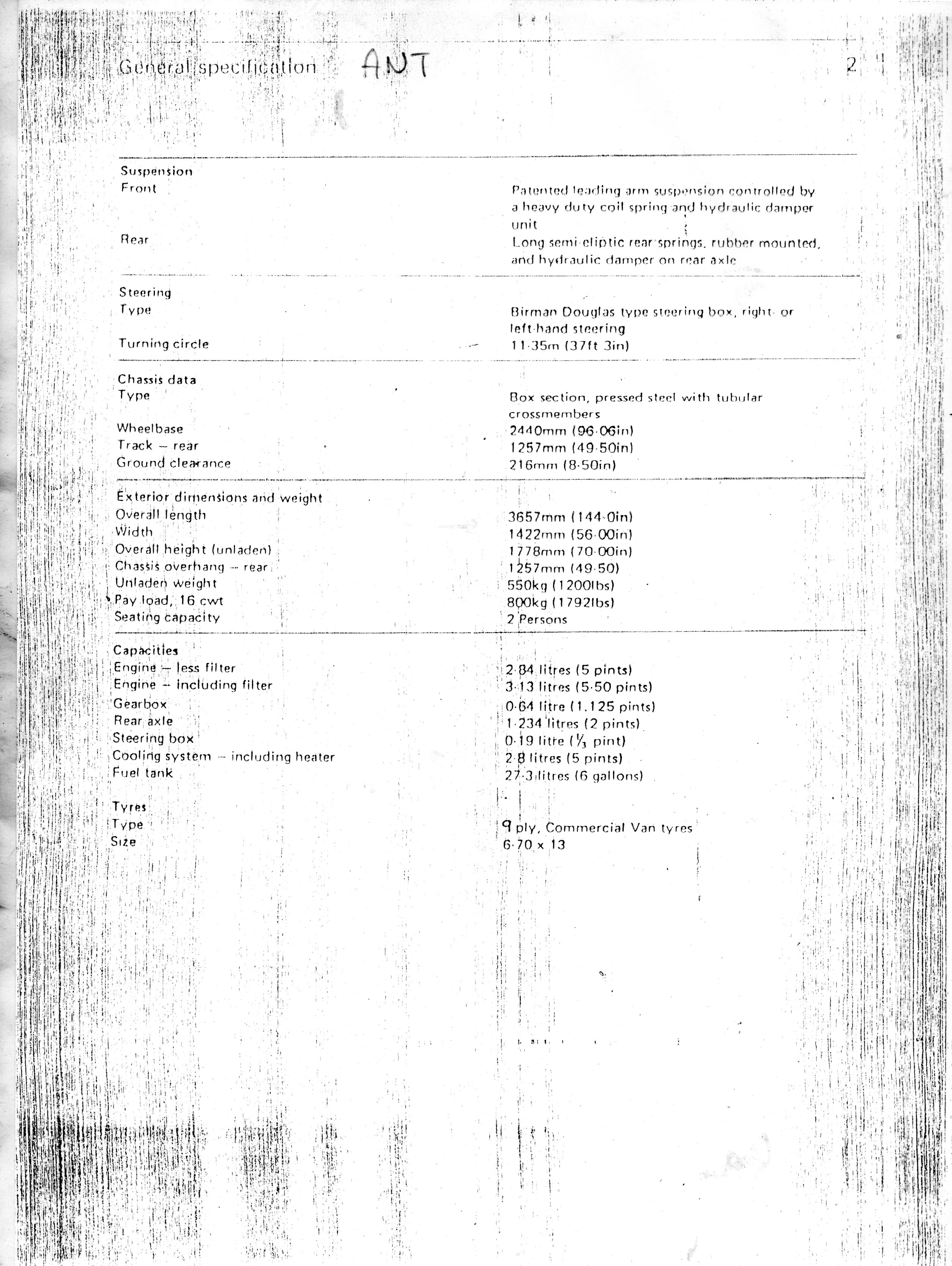

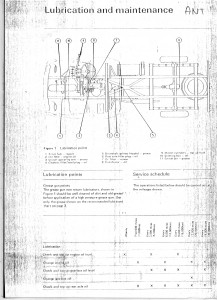

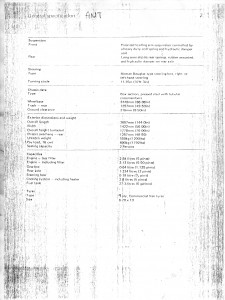

Ant Lubric1Ant Lubric2Gen Spec Ant
